Basic information of Aluminium Fluoride
- ProductName: Aluminum Fluoride
- Aluminium FluorideSynonym: Aluminum Trifluoride
- Aluminium FluorideCAS Number: 7784-18-1
- Aluminium FluorideMolecular Formula: AlF₃
- Aluminium FluorideMolecular Weight: 83.98
- Aluminium FluorideMolar Mass: 83.98 g/mol
- Aluminium FluorideEINECS Number: 232-051-1

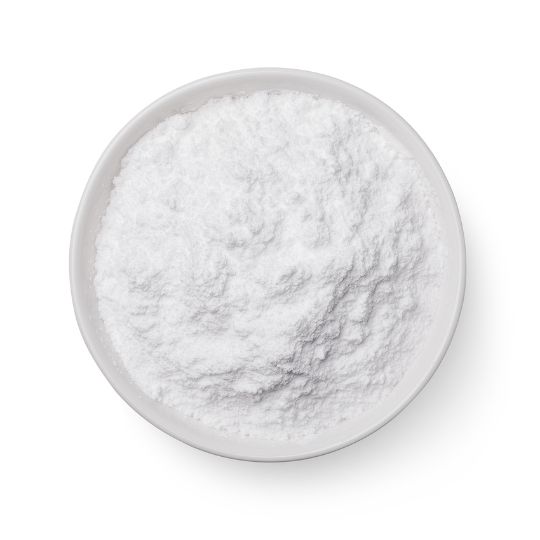

- Aluminium FluorideAppearance: Colorless triclinic crystals or white powder, needle-like crystals
- Aluminium FluorideApplications: Primarily used in the aluminum industry, followed by the ceramics industry and other fields.

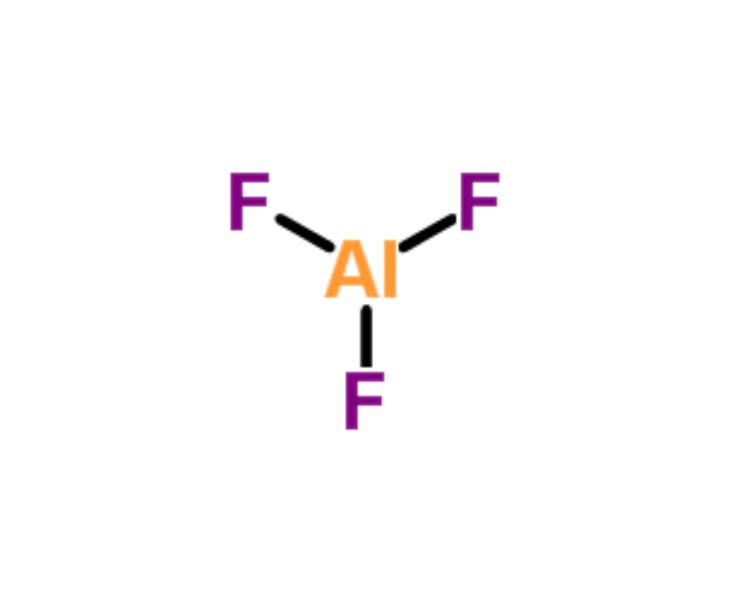

What is Aluminium Fluoride?
- Aluminum Fluoride is an inorganic fluoride that appears as colorless or white crystals.
- The primary function of aluminum fluoride is in aluminum smelting. Adding aluminum fluoride during the aluminum electrolysis process can help companies reduce costs and increase efficiency.
- Aluminum Fluoride is also an excellent dielectric material, possessing optical properties such as low refractive index, wide transmission band, and far-ultraviolet transparency.
- Aluminum fluoride raw materials have clearly defined product grades. If you have any questions about aluminum fluoride, please contact me and I will answer them for you.
Why Choose Highassay?
- Highassay is a Chinese supplier of Aluminum Fluoride raw materials. We use advanced aluminum fluoride production technology: dry process and anhydrous production line, enabling us to provide Aluminum Fluoride raw materials with high bulk density [≥1.3 g/cm³ (AF-1)], good flowability, and low moisture content [≤0.5%].
- Our Aluminum Fluoride raw materials come with MSDS, COA, UN 1759, Class 6.1, and other data, ensuring a worry-free purchase.
- Highassay offers various grades of Aluminum Fluoride raw materials.You can choose the corresponding grade of aluminum fluoride raw material according to your needs.If you are interested in our Aluminum Fluoride, please contact us, and we will provide you with a quote as soon as possible.
Aluminium Fluoride’s Packaging and Storage

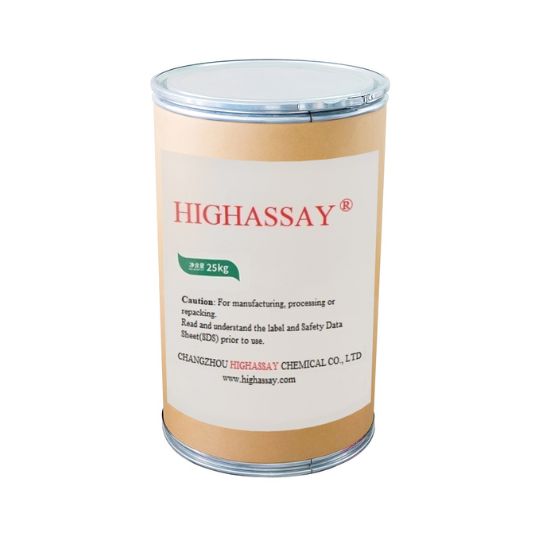

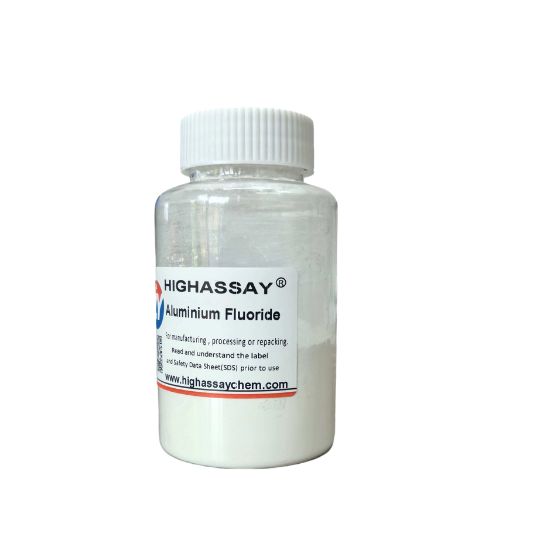

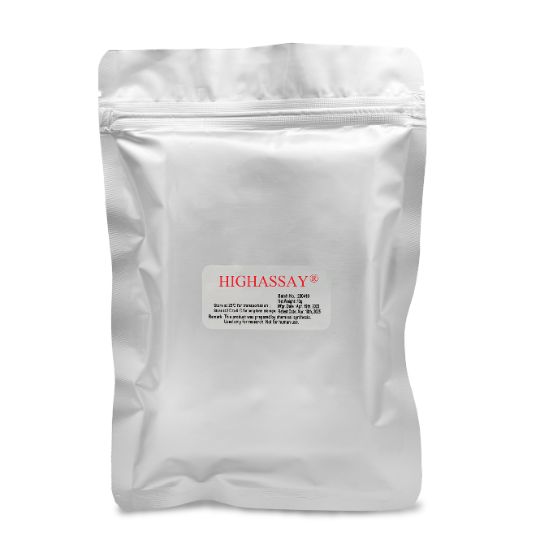

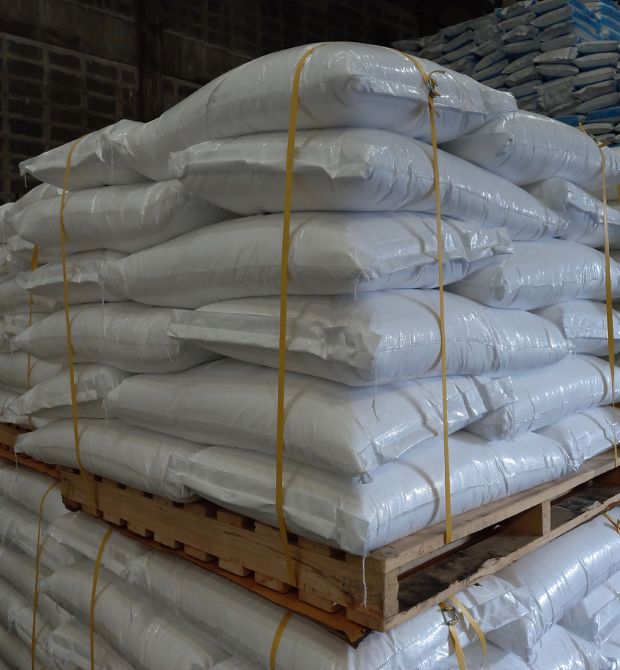

- Aluminium Fluoride’s Common packaging sizes: 25kg/bag, 50kg/bag, or 1000kg/bag (ton bag), all using laminated plastic woven bags with an inner plastic film bag.
- Highassay offers customized packaging for Aluminum Fluoride and can package Aluminum Fluoride according to your requirements.
- Aluminum Fluoride powder should be stored in a cool, ventilated warehouse with sealed packaging, and should not be stored with acids or food chemicals.
Aluminium Fluoride’s Type and Applications
Highassay offers metallurgical-grade, industrial-grade, and optical-grade Aluminum Fluoride. Please contact us if you require inquiries about Aluminum Fluoride raw material prices or related information.
- Highassay provides metallurgical-grade Aluminum Fluoride with a fluorine (F) content ≥60-62%.Furthermore, the control of major impurities such as Na, Si, Fe, P is relatively strict (Na≤4%; SiO₂+Fe₂O₃≤0.3%).This helps ensure stable electrolysis.
- Our metallurgical-grade Aluminum Fluoride is mainly used as an additive and electrolyte conditioner in electrolytic aluminum production. It plays a direct role in determining electrolytic efficiency and energy consumption levels during aluminum smelting.
- Metallurgical-grade Aluminum Fluoride raw materials are available in detailed grades, such as Special Grade 1, Special Grade 2, Grade 1, and Grade 2. Whatever grade you need, we can customize it exclusively for you.
- If you are an electrolytic aluminum producer, aluminum smelter, or aluminum product processing company and need to purchase Aluminum Fluoride raw materials or obtain the latest Aluminum Fluoride market price quotes, please contact us.
- Highassay’s industrial-grade Aluminum Fluoride(CAS 7784-18-1) contains ≥57-61% fluorine (F) with relatively lenient impurity requirements. It is widely used as a flux in ceramics/enamelware, a flux for non-ferrous metals, and a catalyst carrier.
- If you are a ceramics/enamelware manufacturer, adding our Aluminum Fluoride can effectively reduce the firing temperature by 15-30℃ and improve the surface gloss and strength of your products.
- If you are in the non-ferrous metal smelting industry and want to purify the melt, improve smelting purity, you can choose our Aluminum F
- Industrial-grade Aluminum Fluoride can also be used inalcohol fermentation inhibition, welding, and other fields.It is an excellent catalyst and auxiliary agent.
- Our optical-grade AluminumFluoride has a purity ≥99.9% (4N), with metallic impurities controlled below ppm, and is available in powder or granular/block form (1-6mm). It is primarily suitable for high-end manufacturing and R&D companies in optical components, optoelectronics, and other related fields.
- Optical-grade Aluminum Fluoride is a key material for optical coatings, fluoride optical glass, fluoride optical fibers, laser crystals and infrared windows, and optoelectronics and scientific research.
- Our high-purity Aluminum Fluoride can also be used as a low-refractive-index material in optical coatings, achieved through Aluminum Fluoride evaporation. It can be stably evaporated at 800-1000℃ in a vacuum environment.
- If you require customized optical-grade Aluminum Fluoride raw materials (specific purity, specific particle size, or special packaging), please do not hesitate to contact us as soon as possible.
Impurity Specifications for Optical-Grade Aluminum Fluoride
- Impurity Specifications for Optical-Grade Aluminum Fluoride
| Impurity elements | Optical-Grade Control Specifications |
| Fe | ≤ 2 ppm |
| Cu | < 0.1 ppm |
| Ni | < 1 ppm |
| Co | < 1 ppm |
| Mn | < 1 ppm |
| Cr | < 1 ppm |
| Ti | < 1 ppm |
| V | < 1 ppm |
| Si | ≤ 0.1% |
Process types: Wet process Aluminum Fluoride (basically obsolete), dry process Aluminum Fluoride (the most widely used and technologically mature process), anhydrous Aluminum Fluoride (the most advanced third-generation technology).
Dry process Aluminum Fluoride is further divided into crude acid dry process (higher impurity content) and refined acid dry process (higher quality and beneficial for electrolytic aluminum).
Aluminum fluoride targets serve as source materials in the sputtering process, utilized to deposit extremely thin and uniform aluminum fluoride films onto product surfaces. They demand exceptionally high purity—typically ranging from 99.9% (3N) to 99.99% (4N)—and are typically fabricated in shapes such as circular discs or rectangles; they are widely employed within the optical and electronics industries.
The fluorosilicic acid method is a method for preparing Aluminum Fluoride.
The fluorosilicic acid process refers to the production of fluorosilicic acid from fluorine-containing waste gas generated during phosphate fertilizer production.Fluorosilicic acid reacts with aluminum hydroxide to produce Aluminum Fluoride.
The application of Aluminum Fluoride in the new energy field is maturing.It can be used as a modifier for lithium battery cathode materials; a solid electrolyte for sodium batteries; and a surface stabilizer for cathode materials, etc.
If you happen to be engaged in the research and development or production of new energy materials and need high-purity Aluminum Fluoride, please contact us for technical parameters and sample support.
The price of Aluminum Fluoride varies considerably depending on the grade. If you are interested in our Aluminum Fluoride raw materials, click below to get a quote.
Our minimum order quantity for Aluminum Fluoride is related to the grade of the Aluminum Fluoride raw material. Details can be discussed via email.
Physicochemical Properties of Aluminium Fluoride
- Aluminium FluorideMelting Point: 1040°C (High thermal stability)
- Aluminium FluorideBoiling Point: 1272°C (Does not decompose at high temperatures but sublimates)
- Aluminium FluorideDensity: 2.88 – 3.13 g/cm³
- Aluminium FluorideSaturated Vapor Pressure: 0.13 kPa (1238°C)
- Aluminium FluorideHygroscopicity: Hygroscopic
- Aluminium FluorideSolubility (Water): Slightly soluble in cold water, soluble in hot water
- Aluminium FluorideSolubility (Acid/Base): Slightly soluble in acid and base solutions
- Aluminium FluorideSolubility (Hydrofluoric Acid): Highly soluble in hydrofluoric acid solution
- Aluminium FluorideStability: Very stable, does not decompose upon strong heating but sublimates
- Aluminium FluorideReaction with Concentrated Sulfuric Acid: No reaction upon heating with concentrated sulfuric acid
- Aluminium FluorideReaction with Potassium Hydroxide: No change upon melting with potassium hydroxide
- Aluminium FluorideHydrogen Reduction: Not reduced by hydrogen gas
- Aluminium FluorideHydrolysis: Partially decomposes into hydrogen fluoride and aluminum oxide upon heating to 300-400°C by water vapor
- Aluminium FluorideHydrates: Three types of hydrates exist: monohydrate, trihydrate, and nonahydrate.
- Aluminium FluorideToxicity: Toxic
- Aluminium FluorideMain raw materials: Fluorite, sulfuric acid, aluminum hydroxide
